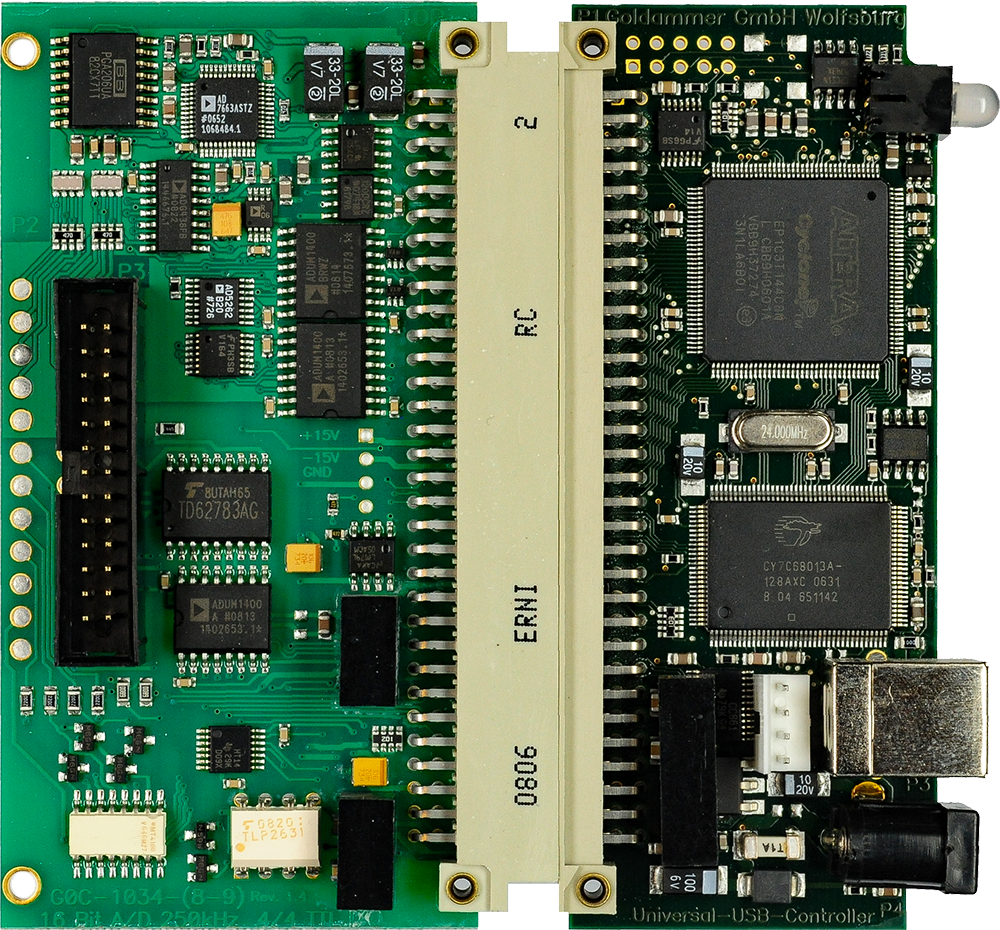

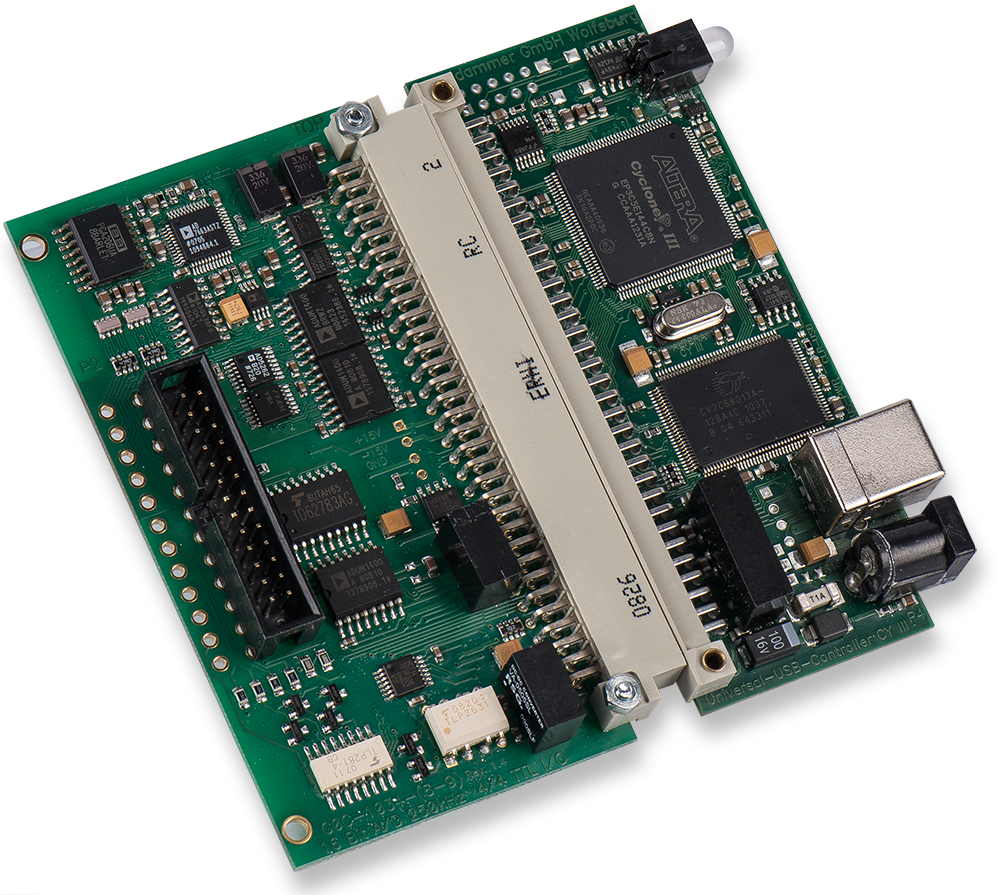

USB DAQ ISO 8 ch. 250kHz 16 Bit A/D, 4/4 DIO, 1×32 ct, rotary., con. screw terminal, G0C-1034-9
G0C-1034-9
USB DAQ measurement system, USB 2.0 HighSpeed (480 Mbit/s), USB 1.1 compatible (12Mbit/s).
With 8 single-ended inputs. A/D resolution of 16 bits, sample rate 250kHz, input voltage range ±10 V, programmable gain 1/2/4/8.
Over voltage protection of analog inputs: ±40 V, powered on/powerless.
External trigger and clock. The event counter, synchronous sampling of counters containing analog values.
1 x 32 bit event counter (frequency counter: resolution 10Hz), or period length counter and pulse width measurement, resolution 20ns or single channel 32 bit Rotarycounter measurement, 1x, 2x, and 4x interpolation programmable, maximum input frequency 10MHz, switchable zero detection, time stamp resolution 100ns, maximum reading frequency 100kHz. Time stamps allow extremely exact velocity measurement.
4 digital inputs with an input voltage of 2.4 to 30 volts, 4 digital outputs for direct control of the relay up to 60mA per output, isolation voltage 1000V. The supply voltage of the digital outputs is supplied externally in the range of 2.4 to 30 volts, isolation voltage 1000V. The G0C-1034-9 does not have a zero position of the incremental encoder.
Without case for integration in customer specific measurement solutions
Signal terminals 26pin pin connector.
Power via USB bus.
Scheme
Data sheet
YoutubeFree drivers:
DASYLab®
DIAdem 32/64 Bit®
LabWindows cvi® LabVIEW®
E.D.A.S.WinPlus®
MAIRecoder® MATLAB®
RogaREC® ServiceLAB®, Windows API Self-programming, other drivers on request.
Product details
| AD | |
|---|---|
| Channels | 8/4 |
| Resolution | 16 Bit |
| Sample rate (sum) | 250 kHz |
| Voltage range | ±10 V; ±5 V; ±2,5 V; ±1,25 V; |
| Simultanous sampling | – |
| DA | |
| Channels | – |
| Resolution | – Bit |
| Output rate (sum) | – |
| Voltage range | – |
| Counter | |
| Channels | 1 |
| Resolution | 32 Bit |
| Basic frequency | 10 MHz |
| Counter versions | impulse counter, frequency counter (resolution: 10Hz) |
| Rotarycounter | |
| Channels | 1 |
| Resolution | 32 Bit Bit |
| Basic frequency | 10 MHz |
| Counter versions | 1x, 2x, und 4x programable Interpolation , maximum input-frequency 10MHz |
| Digital IO | |
| Dig.-In channels | 4 |
| Dig.-Out channels | 4 |
| Dig.-IO channels | – |
| Miscellaneous | |
| Optocoupled | yes (Ue. 2,4 -30 Volt) |
| Case | – |
| Dimensions | 99 x 100 x 13 mm |
| Connectors | 26 pin connector for ribbon cable |
| RoHS compliant | yes |
| Power supply | Powersupply via USB-bus (260 mA). |
| Price | 569,00 € |
Optional hard and software extensions
Available hard and software extensions.
The extensions can either be ordered included in delivery or at any time later.
| Hardware options and extensions | Price € |
|---|---|
| (G0A-30E0-4) Automotive extension. Power supply: 9-60V DC / 10W (for G0A-30D0-x) | 299,00 |
