Intelligent simultaneous Ethernet & USB Measurement System:

Ethernet (100MBit/s) & USB 2.0 HighSpeed (480 MBit/s) USB 2.0 Storage (storing Data on an USB-Stick). Powerful ARM 9 Core, Convenient operation via application oftware ( Dasylab) or Web Interface.

Simultaneous scanning of analog inputs, counters and digital inputs. The resolution of the analog inputs is 16 bit. The inputs are ground referenced together. The sampling rate per channel is 225kHz, the input voltage ranges are ±5 V or ±10 V, the sum sampling rate is 1.35 MHz for 6 channels.
Overvoltage input protection of analog inputs: ±40 V when on or off.

External trigger and clock. The event counter, synchronous sampling of counters containing analog values.

1 x 32  bit event counter (frequency counter: resolution 10Hz), or period length counter and pulse width measurement, resolution 20ns or single channel 32 bit Rotarycounter measurement, 1x, 2x, and 4x interpolation programmable, maximum input frequency 10MHz, switchable zero detection, time stamp resolution 100ns, maximum reading frequency 100kHz. Time stamps allow extremely exact velocity measurement.

4 digital inputs with an input voltage of 2.4 to 30 volts, 4 digital outputs for direct control of the relay up to 60mA per output, isolation voltage 1000V. The supply voltage of the digital outputs is supplied externally in the range of 2.4 to 30 volts, isolation voltage 1000V. The GES-1034-8 does not have a zero position of the incremental encoder.

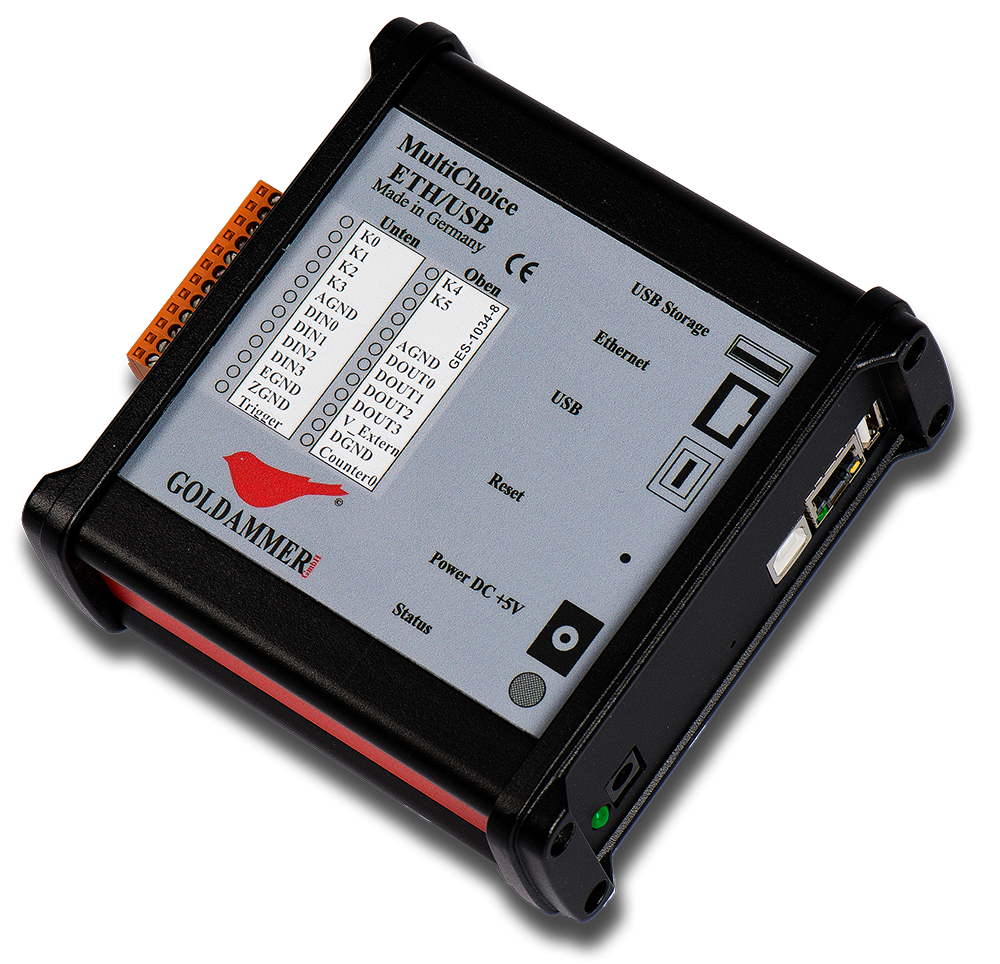

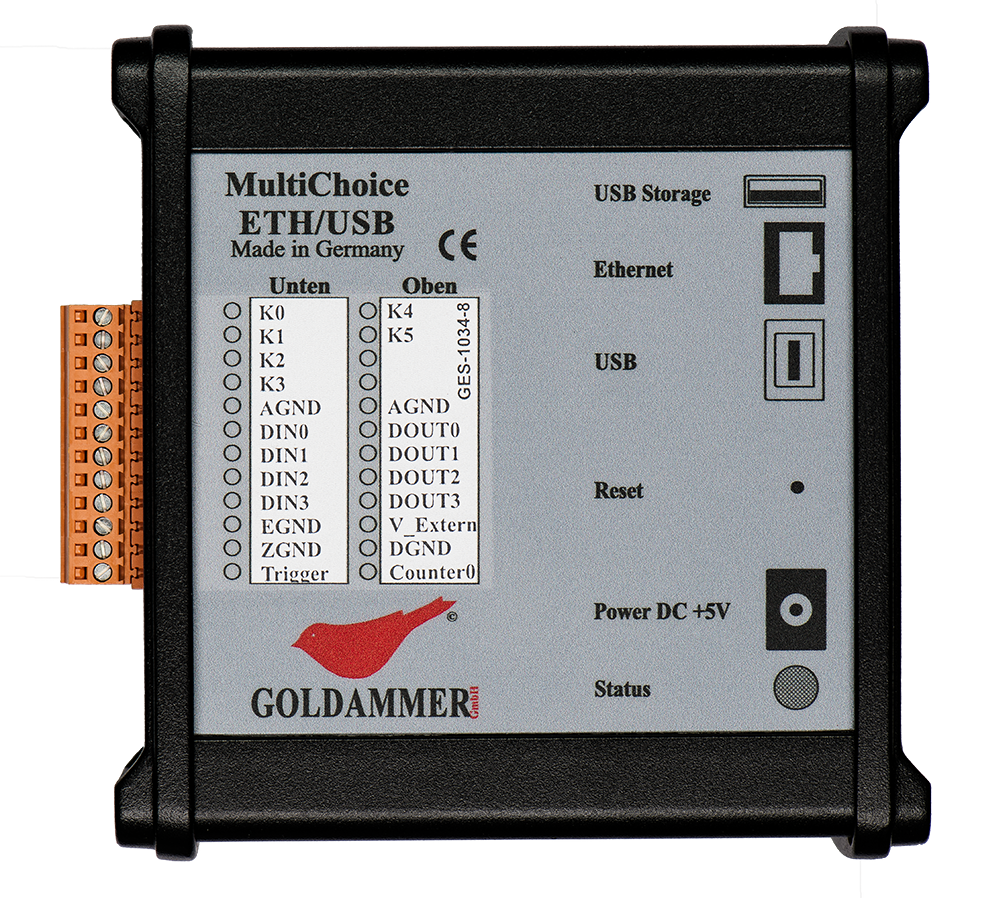

MultiChoice Ethernet and USB in streamlined rugged aluminium cast case.
Signal terminals with  detachable Weidmüller screw terminals.

Including power supply 220V AC / DC 5V.

• ARM 9 Core (400 MHz) CPU
• 512 Megabyte DDR2 RAM, 64KBytes Cache
• 256 Megabyte Flash Memory
• USB 2.0 (Device Port) Data Transfer to the Host-System
• USB 2.0 (Storage Port) to store Data on an USB-Stick or -Harddisk.
• Ethernet interface 100 Mbit / s for PC communication, effective data throughput 70 MB/s
