Intelligent simultaneous Ethernet & USB Measurement System:

Ethernet (100MBit/s) & USB 2.0 HighSpeed (480 MBit/s) USB 2.0 Storage (storing Data on an USB-Stick). Powerful ARM 9 Core, Convenient operation via application software (eg Dasylab) or Web Interface.

12 analogue measurement channels ±10 V; 225 kHz sample rate (Simultaneous) per channel.
Simultaneous scanning of analog inputs, counters and digital inputs. The resolution of the analog inputs is 16 bit. The inputs are ground referenced together. The sampling rate per channel is 225kHz, the input voltage ranges are ±5 V or ±10 V, the sum sampling rate is 2.7 MHz for 12 channels.
Overvoltage input protection of analog inputs: ±40 V when on or off.

4 channel D/A converter, sample rate 10 kHz, 16 bits, output voltage range ±10 V.

2 x 32 bit event counter (frequency counter: resolution 10Hz), or period length counter and pulse width measurement, resolution 20ns or single channel 32 bit Rotarycounter measurement, 1x, 2x, and 4x interpolation programmable, maximum input frequency 10MHz, switchable zero detection, time stamp resolution 100ns, maximum reading frequency 100kHz. Time stamps allow extremely exact velocity measurement.
External trigger and clock. The event counter, synchronous sampling of counters containing analog values.

Digital Port 48 inputs/outputs in Port A-D eight Port E F 16 bit groups, can be set as input or output

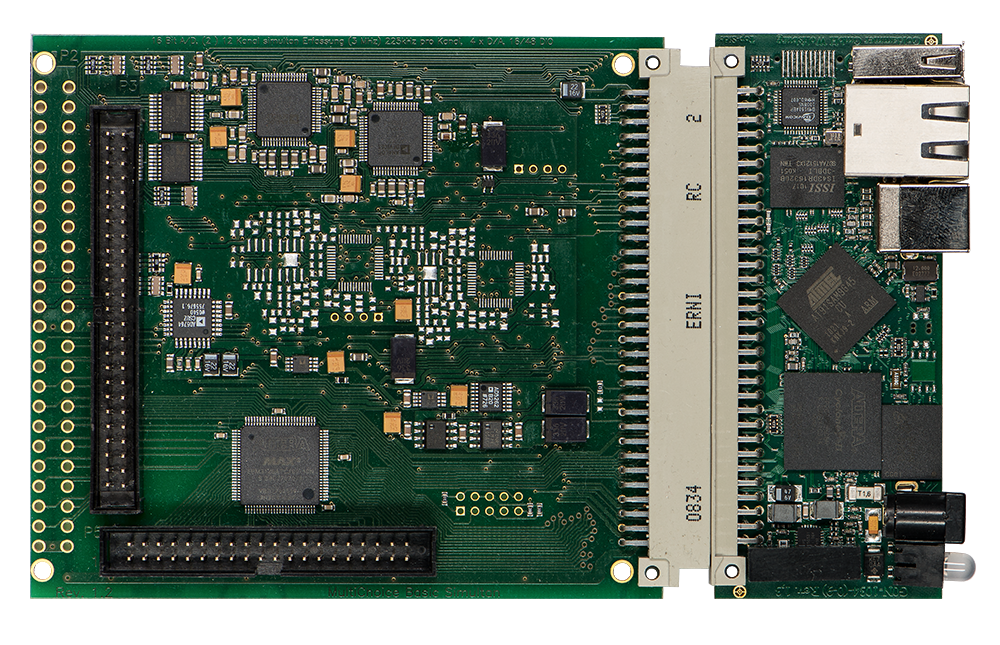

MultiChoice Ethernet and USB OEM, without case for integration in customer specific measurement solutions
Signal terminals over 40 and 50 pins pin connector.

Including power supply 220V AC / DC 5V.

• ARM 9 Core (400 MHz) CPU
• 512 Megabyte DDR2 RAM, 64KBytes Cache
• 256 Megabyte Flash Memory
• USB 2.0 (Device Port) Data Transfer to the Host-System
• USB 2.0 (Storage Port) to store Data on an USB-Stick or -Harddisk.
• Ethernet interface 100 Mbit / s for PC communication, effective data throughput 70 MB/s
