Intelligent autonomous Ethernet & USB Measurement System:

Ethernet (100MBit/s) & USB 2.0 HighSpeed (480 MBit/s) USB 2.0 Storage (storing Data on an USB-Stick). Powerful ARM 9 Core, Convenient operation via application software ( Dasylab) or Web Interface.

With 16 single-ended / 8 differential inputs. A/D resolution of 16 bits, sample rate 250kHz, input voltage range ±10 V, programmable gain 1/2/4/8.
Over voltage protection of analog inputs: ±40 V, powered on/powerless.

4 channel D/A converter, sample rate 10 kHz, 16 bits, output voltage range ±10 V.

2 x 32 bit event counter (frequency counter: resolution 10Hz), or period length counter and pulse width measurement, resolution 20ns or single channel 32 bit Rotarycounter measurement, 1x, 2x, and 4x interpolation programmable, maximum input frequency 10MHz, switchable zero detection, time stamp resolution 100ns, maximum reading frequency 100kHz. Time stamps allow extremely exact velocity measurement.
External trigger and clock. The event counter, synchronous sampling of counters containing analog values.

16 digital inputs/outputs, in four bit groups, can be set as input or output.

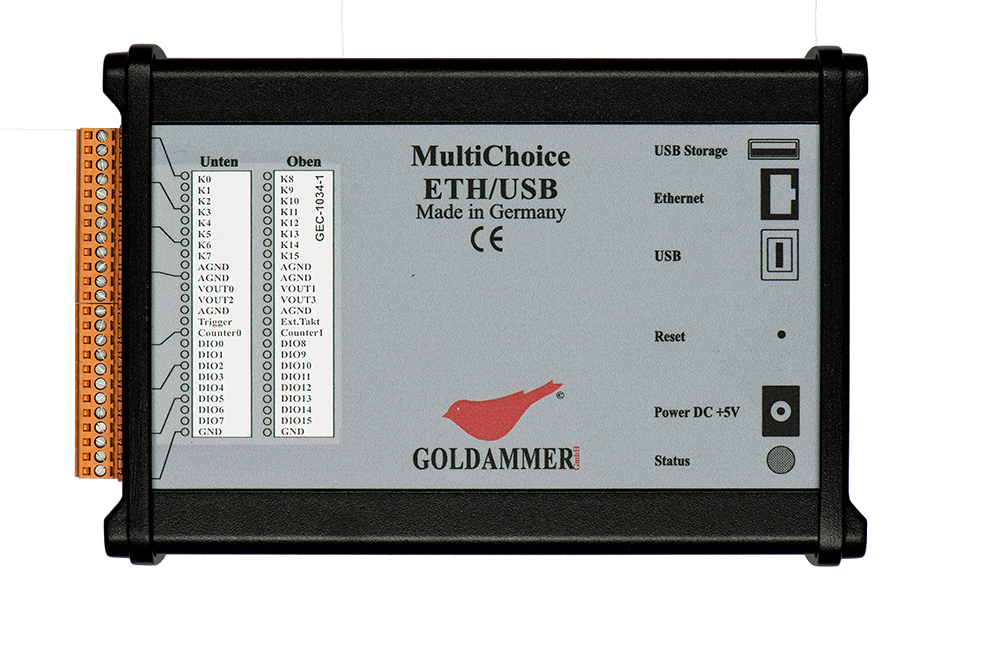

MultiChoice Ethernet and USB in streamlined rugged aluminium cast case.
Signal terminals detachable Weidmüller screw terminals.

Including power supply 220V AC / DC 5V.

• ARM 9 Core (400 MHz) CPU
• 512 Megabyte DDR2 Arbeitsspeicher, 64KBytes Cache
• 256 Megabyte Flashspeicher
• USB 2.0 (Deviceport) Datentransfer mit Host-System
• USB 2.0 (Storageport) Datenspeicherung auf USB-Stick oder Festplatte.
• Ethernet-Schnittstelle 100 MBit/s für PC-Kommunikation, effektiver Datendurchsatz 70 MB/s
