Intelligent autonomous Ethernet & USB Measurement System:
Ethernet (100MBit/s) & USB 2.0 HighSpeed (480 MBit/s) USB 2.0 Storage (storing Data on an USB-Stick). Powerful ARM 9 Core, Convenient operation via application software ( Dasylab) or Web Interface.
With 16 single-ended / 8 differential inputs. A/D resolution of 16 bits, sample rate 250kHz, input voltage range ±10 V, programmable gain 1/2/4/8.
Over voltage protection of analog inputs: ±40 V, powered on/powerless.
4 channel D/A converter, sample rate 10 kHz, 16 bits, output voltage range ±10 V.
2 x 32 bit event counter (frequency counter: resolution 10Hz), or period length counter and pulse width measurement, resolution 20ns or single channel 32 bit Rotarycounter measurement, 1x, 2x, and 4x interpolation programmable, maximum input frequency 10MHz, switchable zero detection, time stamp resolution 100ns, maximum reading frequency 100kHz. Time stamps allow extremely exact velocity measurement.
External trigger and clock. The event counter, synchronous sampling of counters containing analog values.
8 digital inputs with an input voltage of 2.4 to 30 volts, 8 digital outputs for direct control of the relay up to 60mA per output, isolation voltage 1000V. The supply voltage of the digital outputs is supplied externally in the range of 2.4 to 30 volts, isolation voltage 1000V.

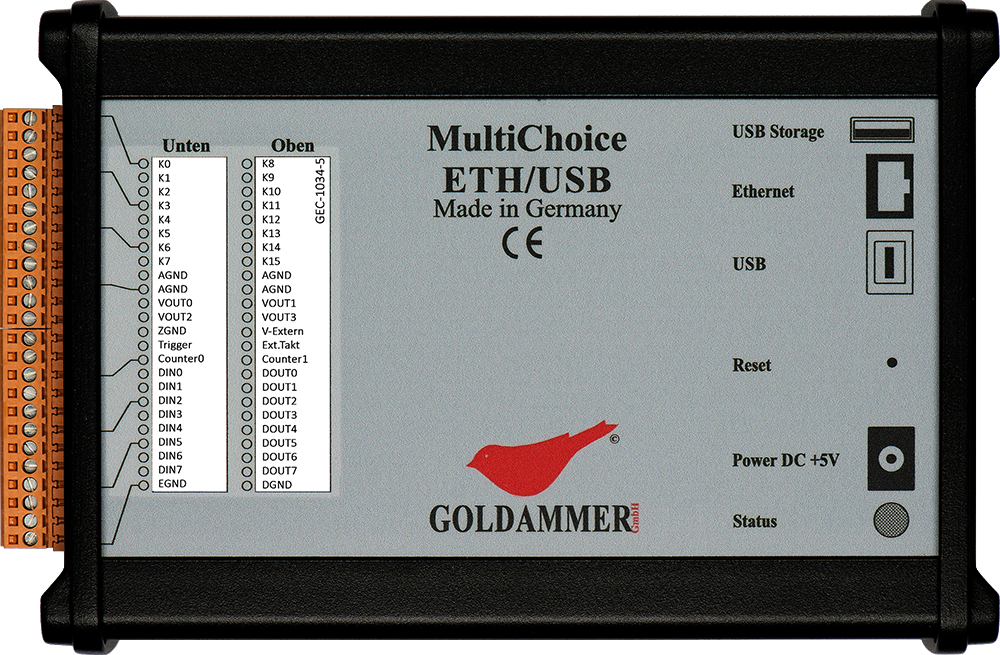

MultiChoice Ethernet and USB in streamlined rugged aluminium cast case.
Signal terminals with detachable Weidmüller screw terminals.
Including power supply 220V AC / DC 5V.
- ARM 9 Core (400 MHz) CPU
- 512 Megabyte DDR2 RAM, 64KBytes Cache
- 256 Megabyte Flash Memory
- USB 2.0 (Device Port) Data Transfer to the Host-System
- USB 2.0 (Storage Port) to store Data on an USB-Stick or -Harddisk.
- Ethernet interface 100 Mbit / s for PC communication, effective data throughput 70 MB/s
Free drivers:
DASYLab®
LabVIEW®
IPEmotion®
MAIRecoder® MATLAB®
RogaREC® Windows API Selbstprogrammieung, more drivers from request.
Product details
| AD | |
|---|---|
| Channels | 16/8 |
| Resolution | 16 Bit |
| Sample rate (sum) | 250 kHz |
| Voltage range | ±10 V; ±5 V; ±2,5 V; ±1,25 V; |
| Simultanous sampling | – |
| DA | |
| Channels | 4 |
| Resolution | 16 Bit |
| Output rate (sum) | 10 kHz |
| Voltage range | ±10 V; |
| Counter | |
| Channels | 2 |
| Resolution | 32 Bit |
| Basic frequency | 10 MHz |
| Counter versions | impulse, frequency (resolution: 10Hz), pulse-width, periodic |
| Rotarycounter | |
| Channels | 1 |
| Resolution | 32 Bit Bit |
| Basic frequency | 10 MHz |
| Counter versions | 1x, 2x, und 4x programable Interpolation , maximum input-frequency 10MHz |
| Digital IO | |
| Dig.-In channels | 8 |
| Dig.-Out channels | 8 |
| Dig.-IO channels | – |
| Miscellaneous | |
| Optocoupled | yes (Ue. 2,4 -30 Volt) |
| Case | aluminium cast case |
| Dimensions | 180 x 118 x 49 mm |
| Connectors | Weidmüller-screw terminals |
| RoHS compliant | yes |
| Price | 2.099,00 € |
