Intelligent autonomous Ethernet & USB Measurement System:

Ethernet (100MBit/s) & USB 2.0 HighSpeed (480 MBit/s) USB 2.0 Storage (storing Data on an USB-Stick). Powerful ARM 9 Core, Convenient operation via application software (eg Dasylab) or Web Interface.

The analog inputs are DIN IEC 60381-1 and DIN IEC 60381-2 compliant.
8 ground related/4 differential inputs. A mixed acquisition of differential and ground related signals is possible.

Almost any sensor can be used directly, as the inputs conform to the standards DIN IEC 60381-1 and DIN IEC 60381-2.
Analog measured values are acquired or output on these systems with a resolution of 16 bits. The sum sampling rate is 1MHz.
Seven input voltage ranges between ±12.28V and ±0.64V per channel separately selectable, injection of a DC offset voltage at common possible for optimal utilization of the value range. Input protection of the analog inputs: ±30 V when switched on or off.

4 channel D/A converter, sample rate 10 kHz, 16 bits, output voltage range ±10 V.

External trigger and clock. The event counter, synchronous sampling of counters containing analog values.

4 digital inputs with an input voltage of 2.4 to 30 volts, 4 digital outputs for direct control of the relay up to 60mA per output, isolation voltage 1000V. The supply voltage of the digital outputs is supplied externally in the range of 2.4 to 30 volts, isolation voltage 1000V.

1 x 32 bit event counter (frequency counter: resolution 10Hz), or period length counter and pulse width measurement, resolution 20ns or single channel 32 bit Rotarycounter measurement, 1x, 2x, and 4x interpolation programmable, maximum input frequency 10MHz, switchable zero detection, time stamp resolution 100ns, maximum reading frequency 100kHz. Time stamps allow extremely exact velocity measurement. The GEI-1034-8 does not have a zero position of the incremental encoder.

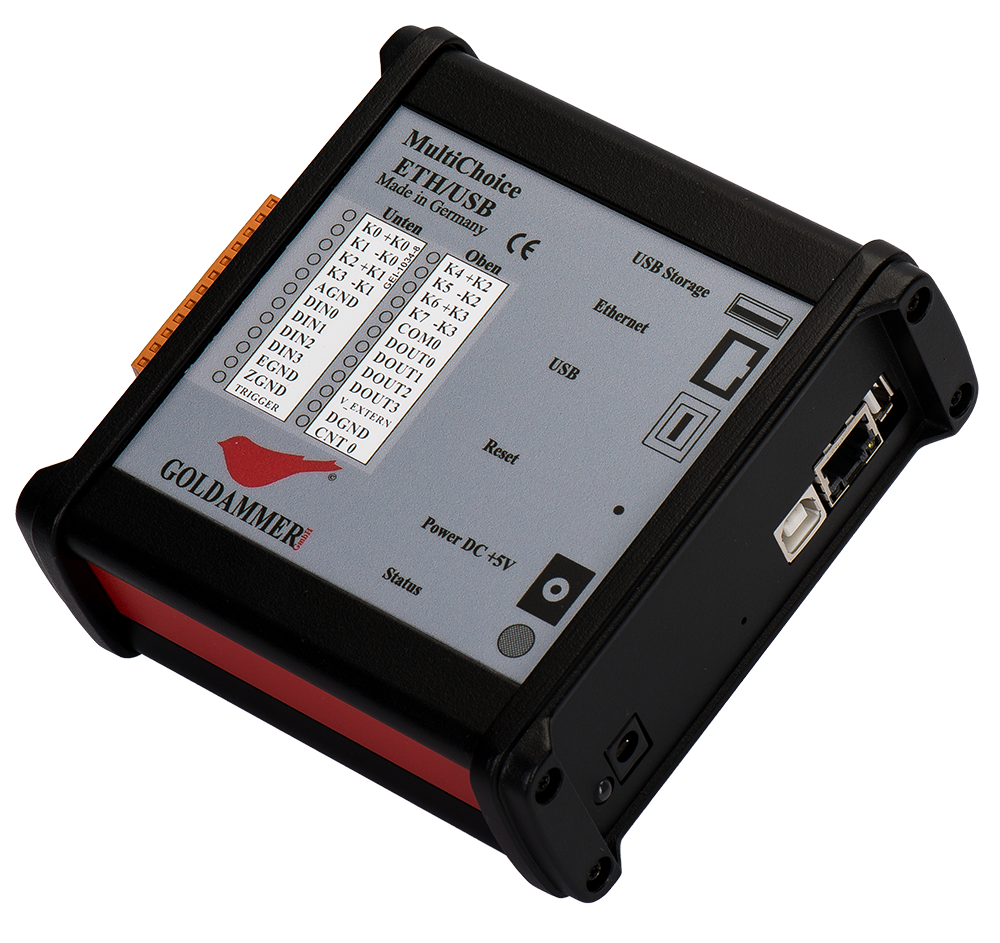

MultiChoice Ethernet and USB in streamlined rugged aluminium cast case.

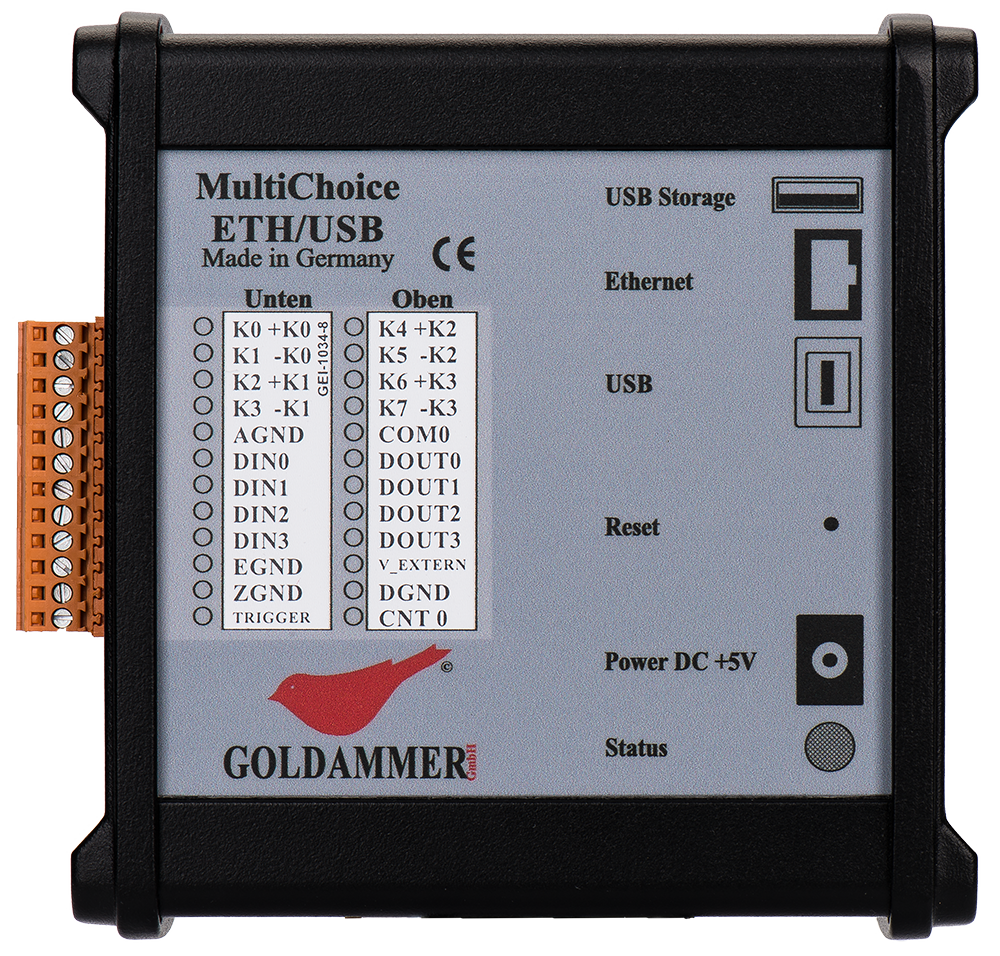

Signal terminals with  detachable Weidmüller screw terminals.

Including power supply 220V AC / DC 5V.

• ARM 9 Core (400 MHz) CPU
• 512 Megabyte DDR2 RAM, 64KBytes Cache
• 256 Megabyte Flash Memory
• USB 2.0 (Device Port) Data Transfer to the Host-System
• USB 2.0 (Storage Port) to store Data on an USB-Stick or -Harddisk.
• Ethernet interface 100 Mbit / s for PC communication, effective data throughput 70 MB/s
